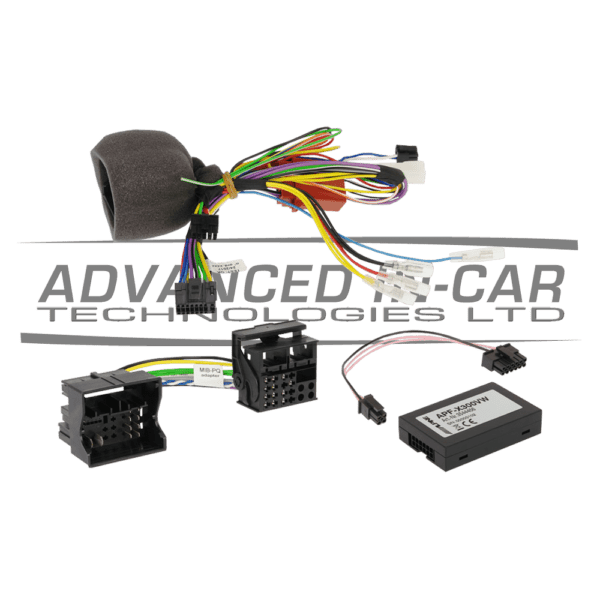

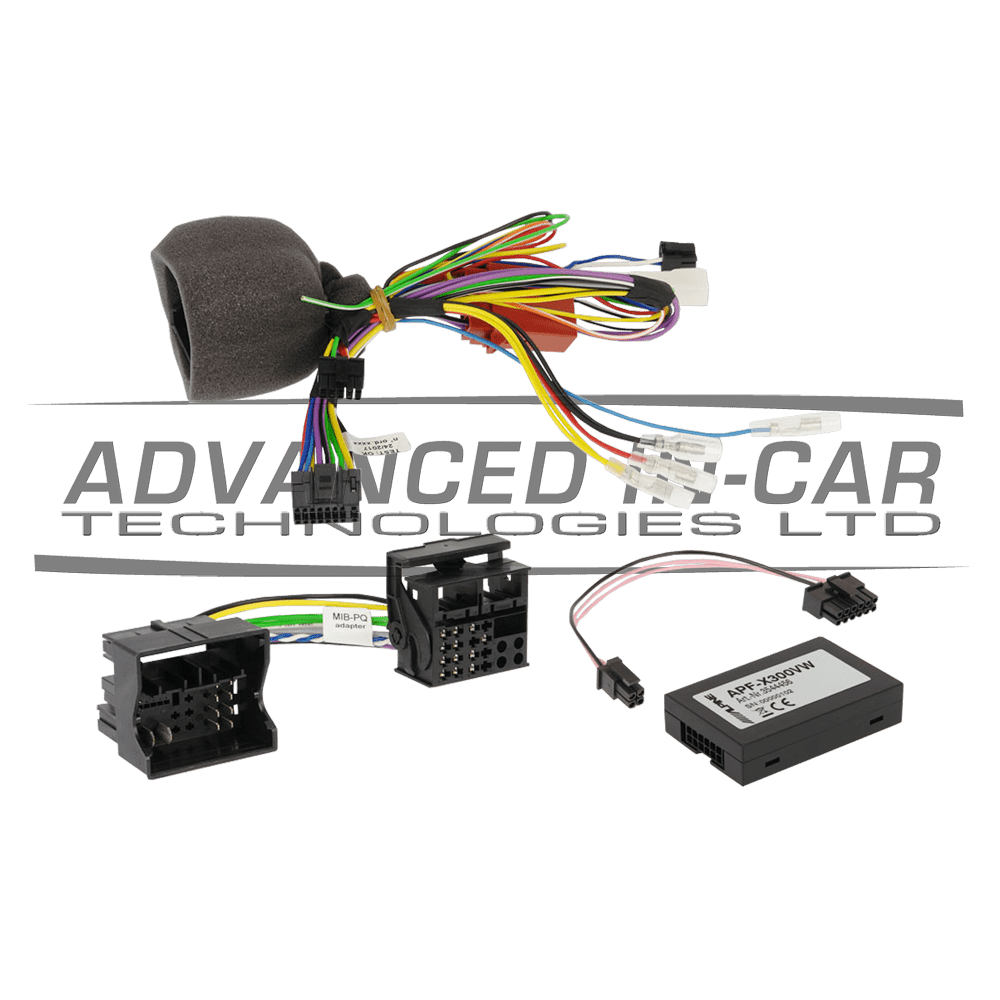

Alpine APF-X303VW – UART Can-Bus Interface

Alpine APF-X303VW – UART Can-Bus Interface – NEW Model

The Alpine APF-X303VW Is A Specialist CAN-BUS Interface That Allows Deeper Integration Between Your VW Vehicle & Stereo System

Features

Retain Steering Wheel, Vehicle Display Functions, Parking & Heating Visualisations
While replacing the original equipment will not limit the functions, drivers will appreciate the ability to retain such visualisations and controls. The APF-X303VW is our solution that allows the customer to receive the same kind of images while operating the heater or air condition controls and also during parking. The interface will also support the VW radio display in the instrument cluster (MFD) and VW Steering Wheel Remote Control.

Supports Basic Functions of Original Steering Wheel Controls
The Alpine system is connected to your steering wheel control buttons. This means you do not lose this convenient feature when upgrading to Alpine and you will have control over volume, phone (hook on/off), audio track forward/backward and many other commands. You can even activate Siri voice control if you have an iPhone connected to the system – right from your steering wheel. (Functions vary and are not always compatible with every wheel)

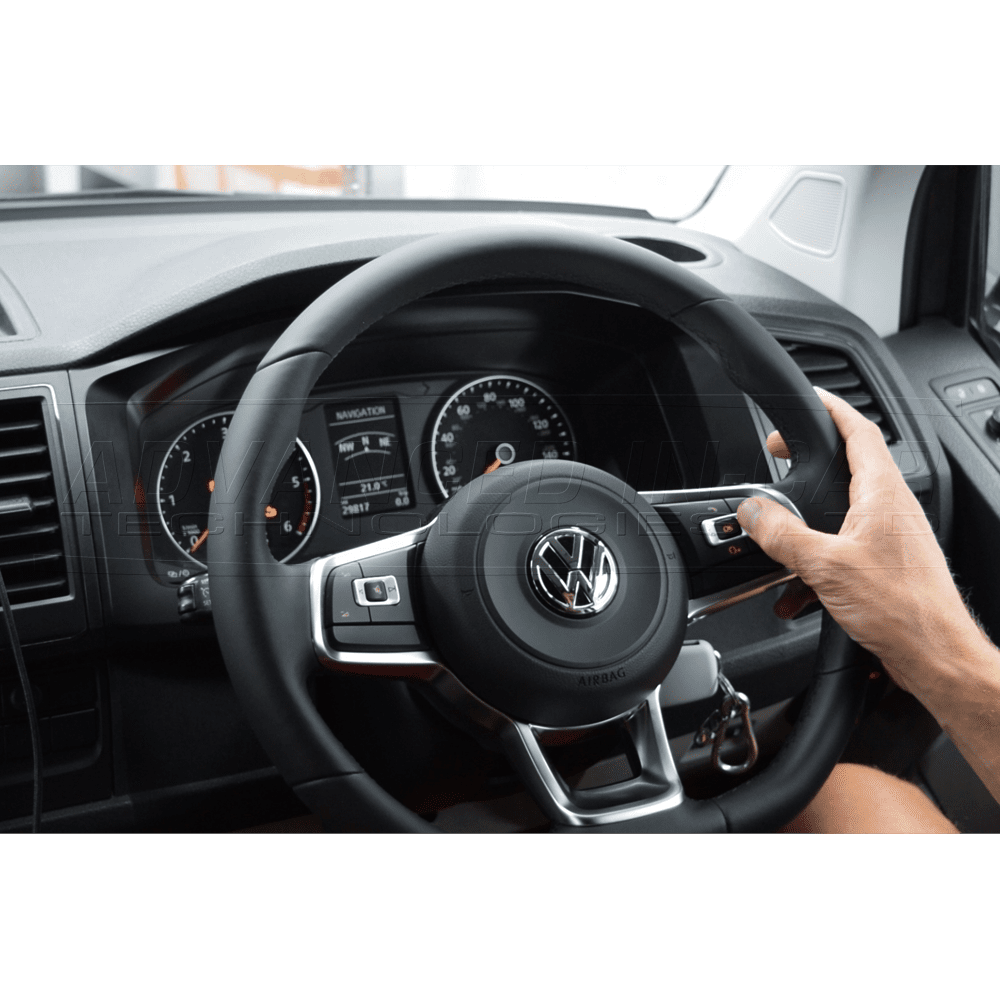

Retain Driver Information Display (MFD)
The small display in the instrument cluster is also connected to the Alpine system and can display radio station names, song titles and artist information, caller names, navigation turn-by-turn arrows (Where Navigation is installed and coded) and much more.

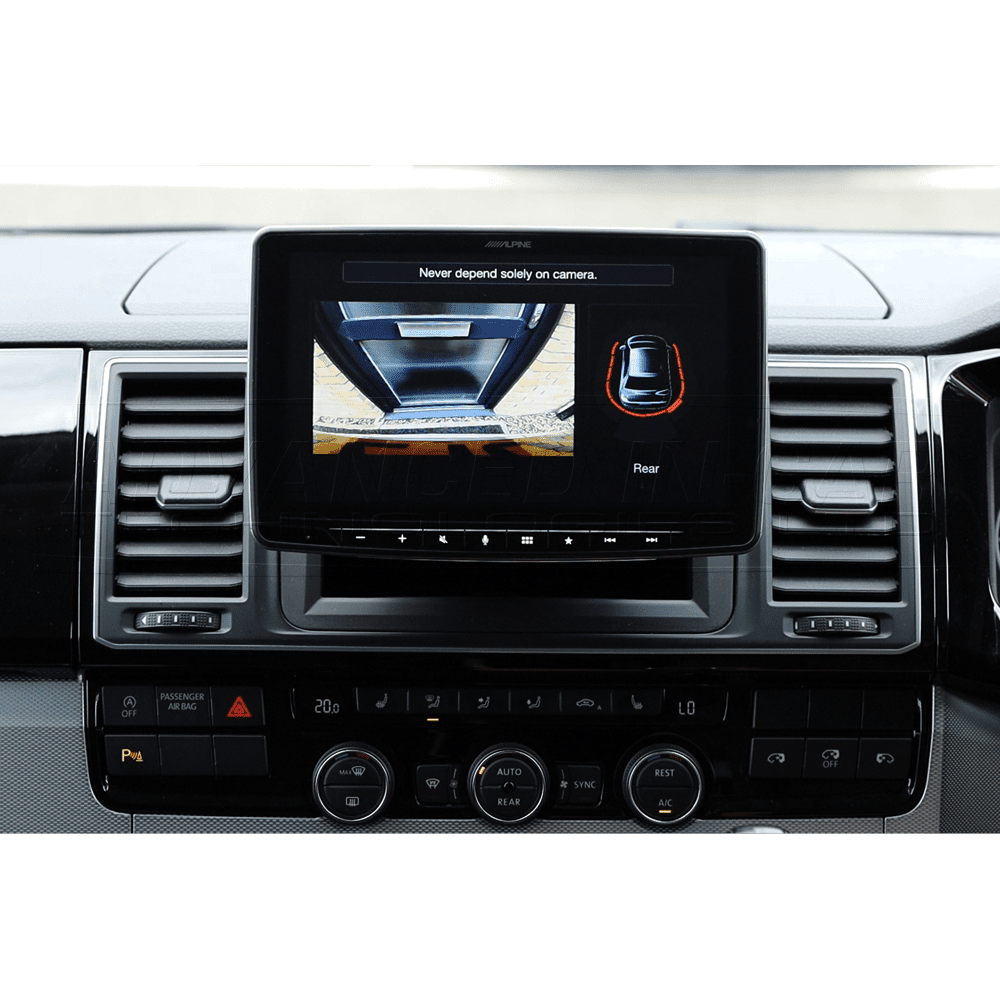

Retain Optical Parking Sensor Display
If your car is equipped with original parking sensors, you can continue to use this convenient feature when upgrading to Alpine. The parking sensor system is connected to your Alpine screen, showing a convenient distance display. Our 2nd generation of Alpine Style headunits features parking sensor display with much higher display detail.

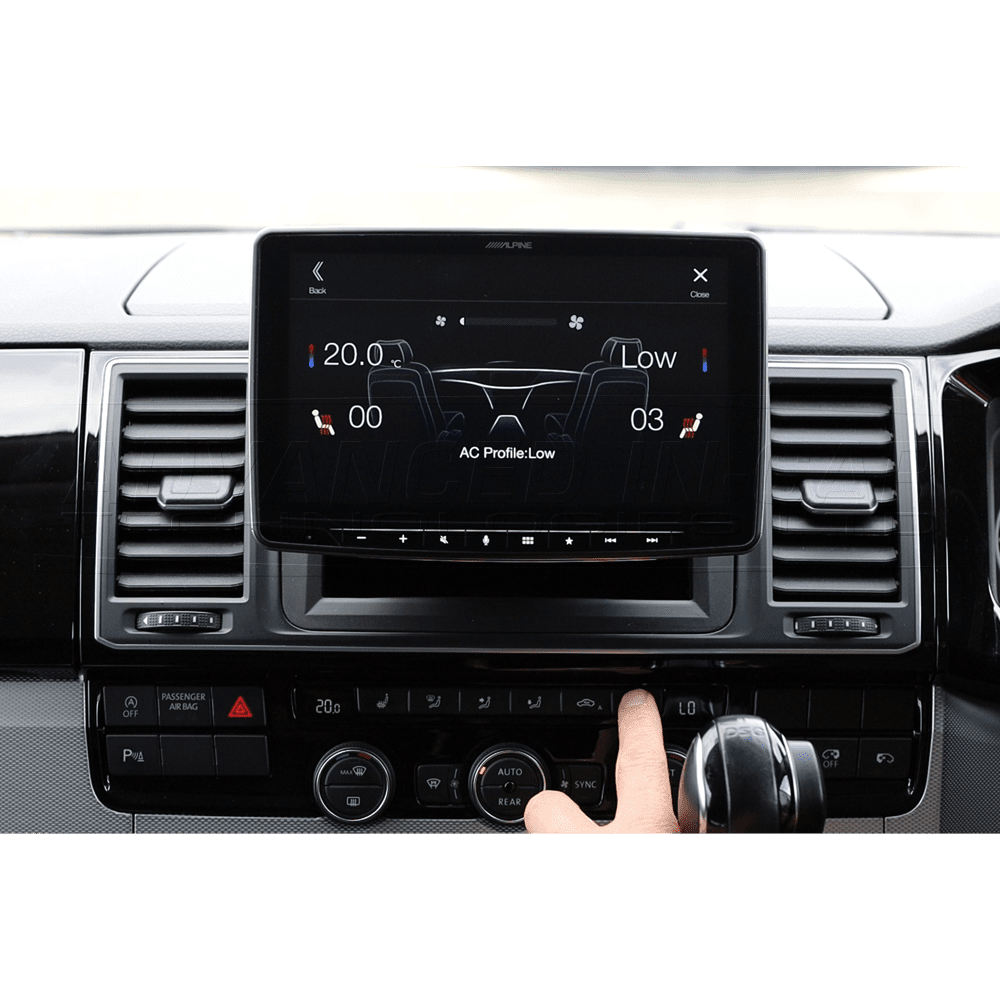

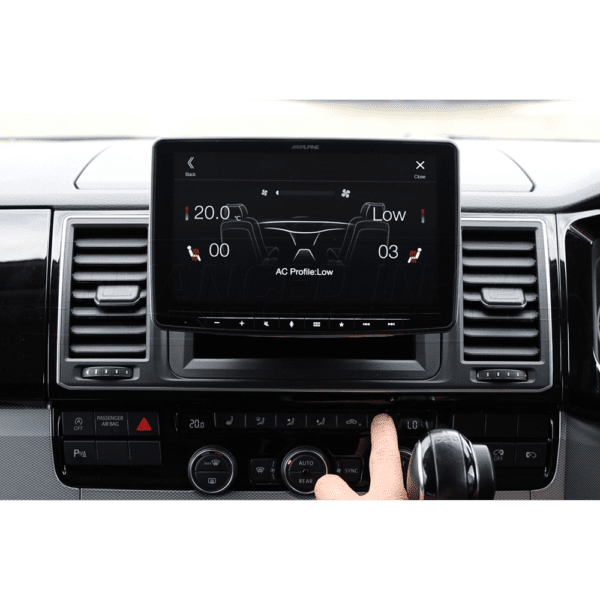

Retain Climate Control Visuals Info
The headunit gives you visual feedback for the selected temperature of driver and co-driver, AC status, seat heating level, selected air vents and more. This screen will automatically appear for a few seconds when any of the named settings is changed to give the driver feedback. Typically this is only supported on VW’s that have the high end climate control system installed from factory.

YouTube Video

Installed into a VW Transporter T6 with Alpine Halo 9

Vehicle Compatibility

Volkswagen Amarok (2H) 03/2010+
Volkswagen Beetle (5C) 11/2011+
Volkswagen Caddy (2K / 2KN) 2010+
Volkswagen CC (3CC) 01/2012 – 11/2016
Volkswagen EOS (1F) 05/2006 – 05/2015
Volkswagen Golf VI (1K / 1KM) 11/2008 – 04/2013
Volkswagen Golf Plus Facelift 01/2009 – 2014
Volkswagen Jetta VI (16) 01/2011 – 2016
Volkswagen Passat CC (35) 06/2008 – 2012
Volkswagen Passat B7 (36) 11/2010 – 10/2014
Volkswagen Polo V (6R) 03/2009 – 04/2014
Volkswagen Scirocco III (13) 08/2008 – 2017
Volkswagen Sharan II (7N) 09/2010 – 2017
Volkswagen T5 Facelift (7 H/E/J) 09/2009 – 06/2015
Volkswagen T6 (7 H/E/J) 07/2016+
Volkswagen Tiguan (5N) 04/2007 – 2015
Volkswagen Touran (1T / GP / GP2) 2010 – 04/2015

Please Note:

• Certain functions will only be visable depending on the vehicle and Alpine Stereo System Installed. If your vehicle does not have Genuine Parking Sensors for example, the UART will not be able to display this.
• Compatible with only the 3rd / 2nd generation of Alpine Style headunits
• Only for cars with white MFD (Multifunctional display)
• For cars with white MFD, if the car was not equipped with a screen before, it may be necessary to program the vehicle in order to enable the visualisation. Please consult with an authorised dealer or service workshop
