Mercedes Sprinter Reversing Camera

Mercedes Sprinter Reversing Camera

Without a doubt one of the largest commercial vehicles (Short of it being a truck) available on the market it’s a big old beast and is near on impossible to reverse safely without any additional aids. As many will know the Sprinter is basically a VW Crafter but with a few slightly different external features.

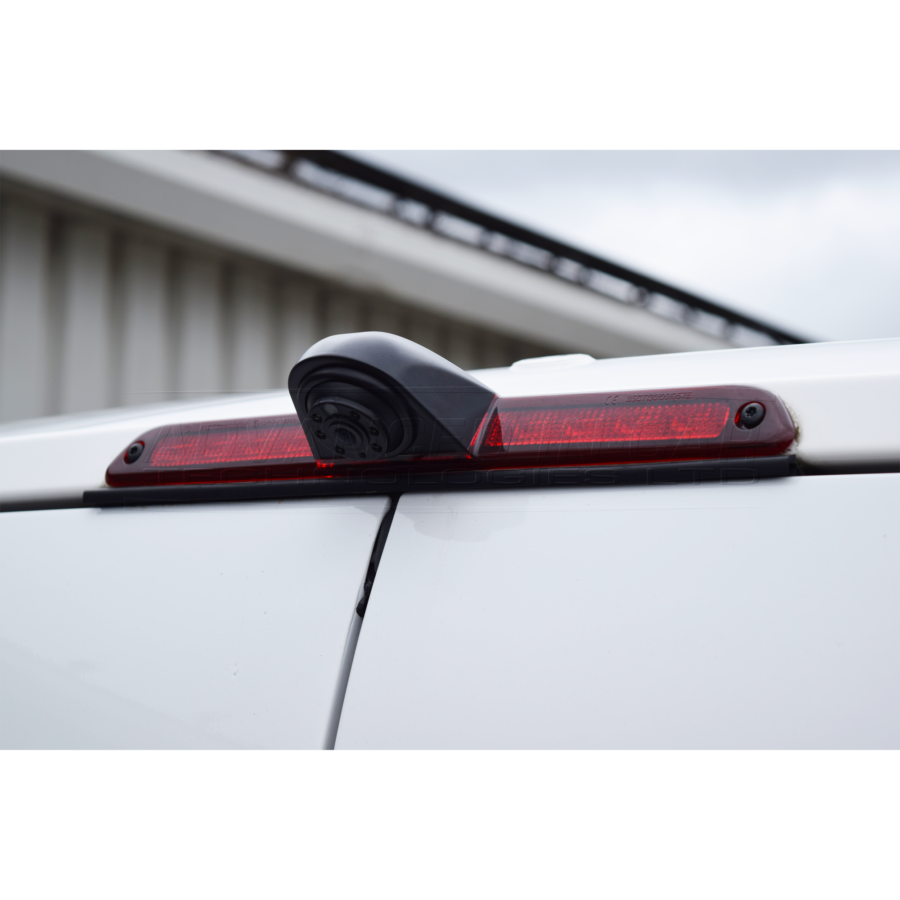

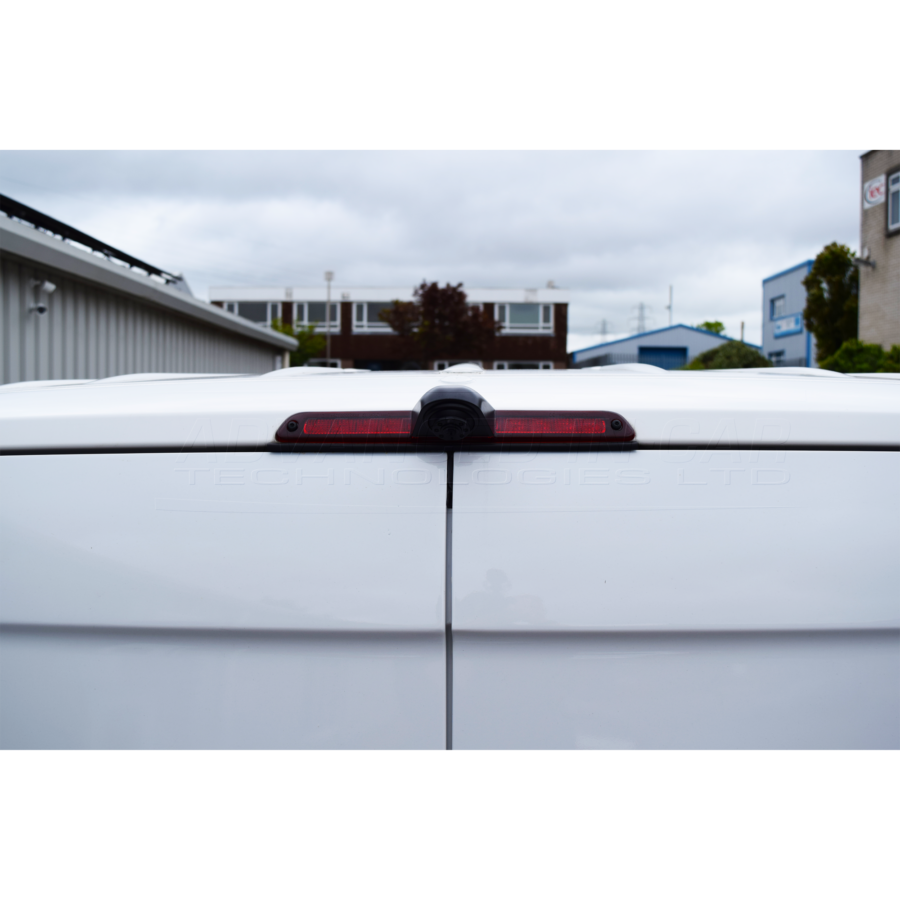

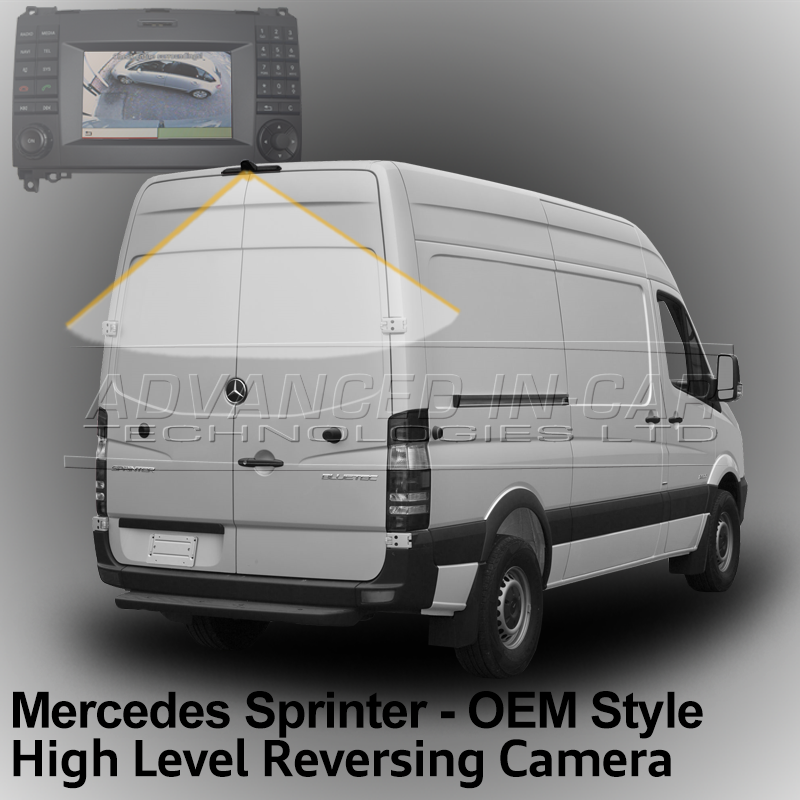

Here we have an OEM Style High-Level Brake Light Reversing Camera that integrates into the rear of the Sprinter to give you an impressive rear view image on your Audio 15 or Aftermarket system installed at the front.

Using an OEM spec design means that the integration with the vehicle is just like the factory but cheaper!

This kit is suitable for the Mercedes Sprinter that has the Audio 15. This is the “Nav Ready System” as you can see in the images. Included in the kit is an Activator dongle that allows you to code the vehicle to accept the camera onto the factory stereo system. This system can also be integrated with an Aftermarket Stereo with a Reverse Camera Input or Rear View Mirror Screen (Get in touch if you want to know more on how we can do this).

 Specification

• 1/4″ CMOS image sensor
• TV system: NTSC
• 580 TV lines
• Guidelines are selectable via the green wire
• Power: 12V DC
• Built-in microphone (Only works with stereos that offer this)
• 170° Viewing angle
• Resoultion: 762 x 504
• Min illumination: 0.1 LUX
• Lens: F2.0
• 6 Night vision LEDs
• IP67 rating
• 4 Pin screw video/power connection
• 150mA power consumption
• E Marked E13
• Dimensions: 22 x 39 x 22mm

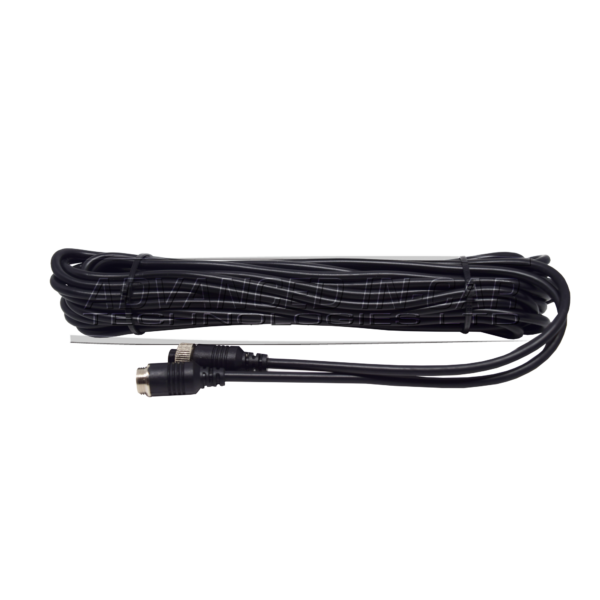

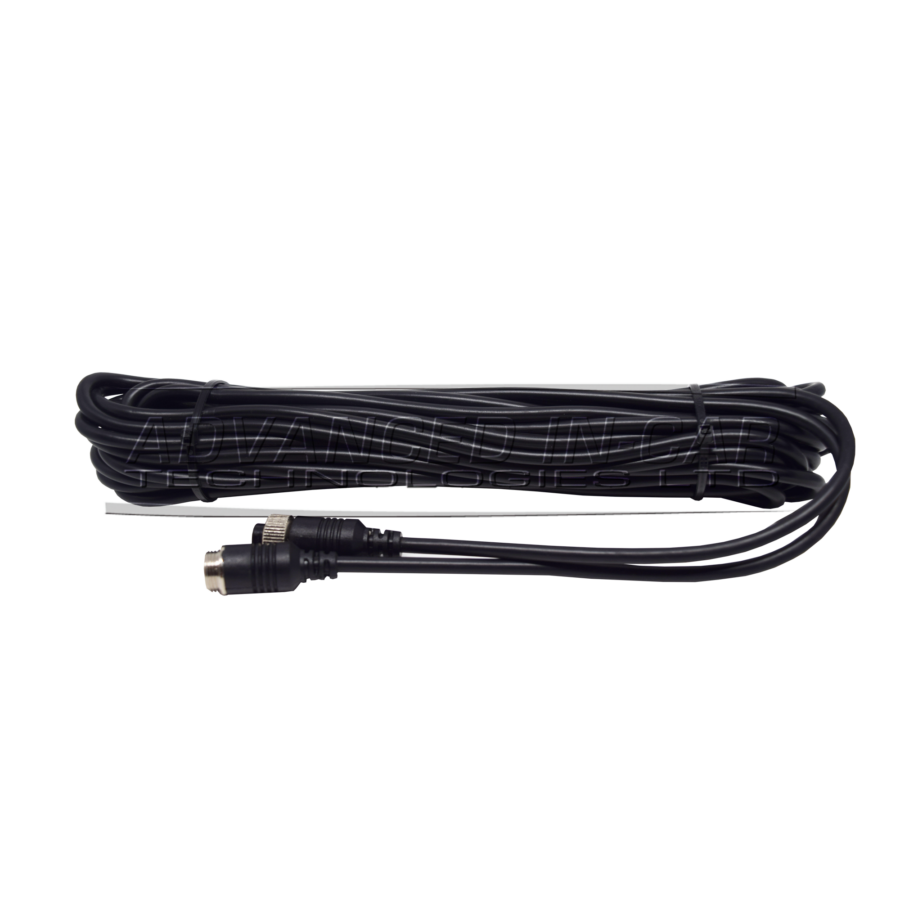

• 10M AV Cable

Scope of Delivery

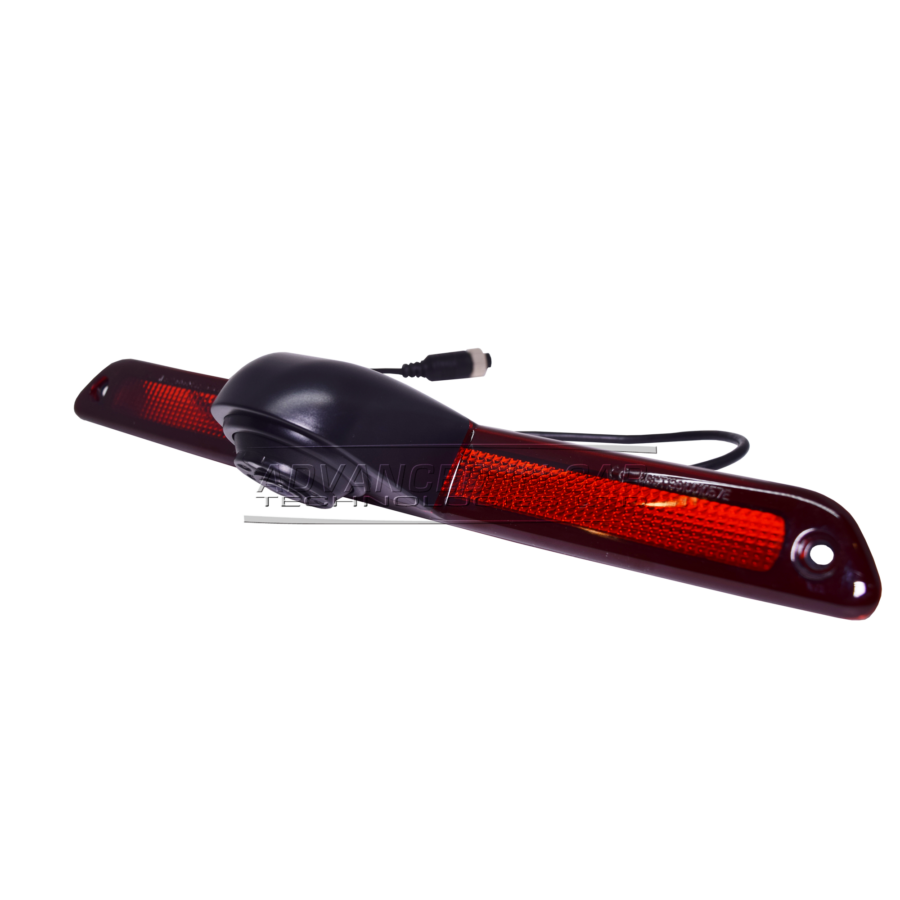

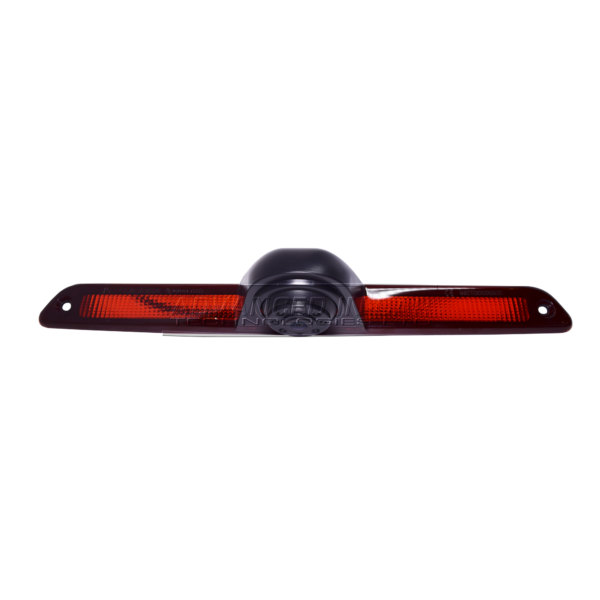

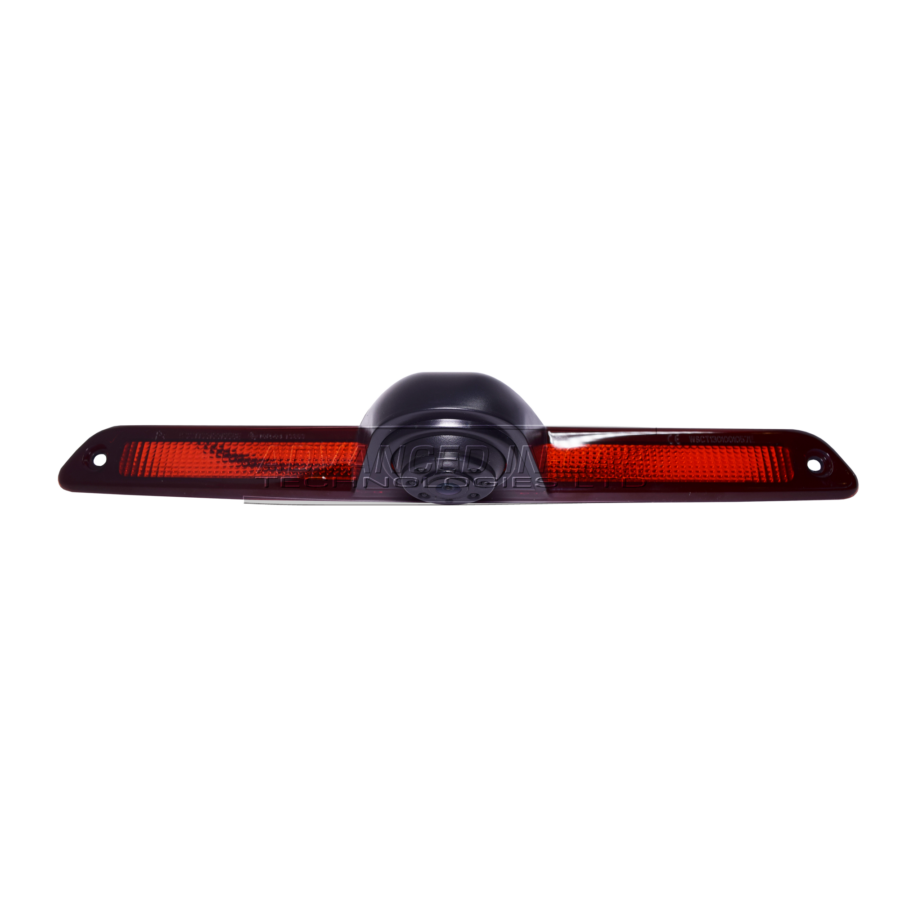

• High-Level Brake Light Camera

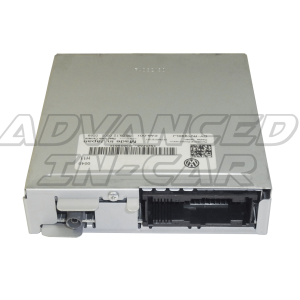

• Video Interface

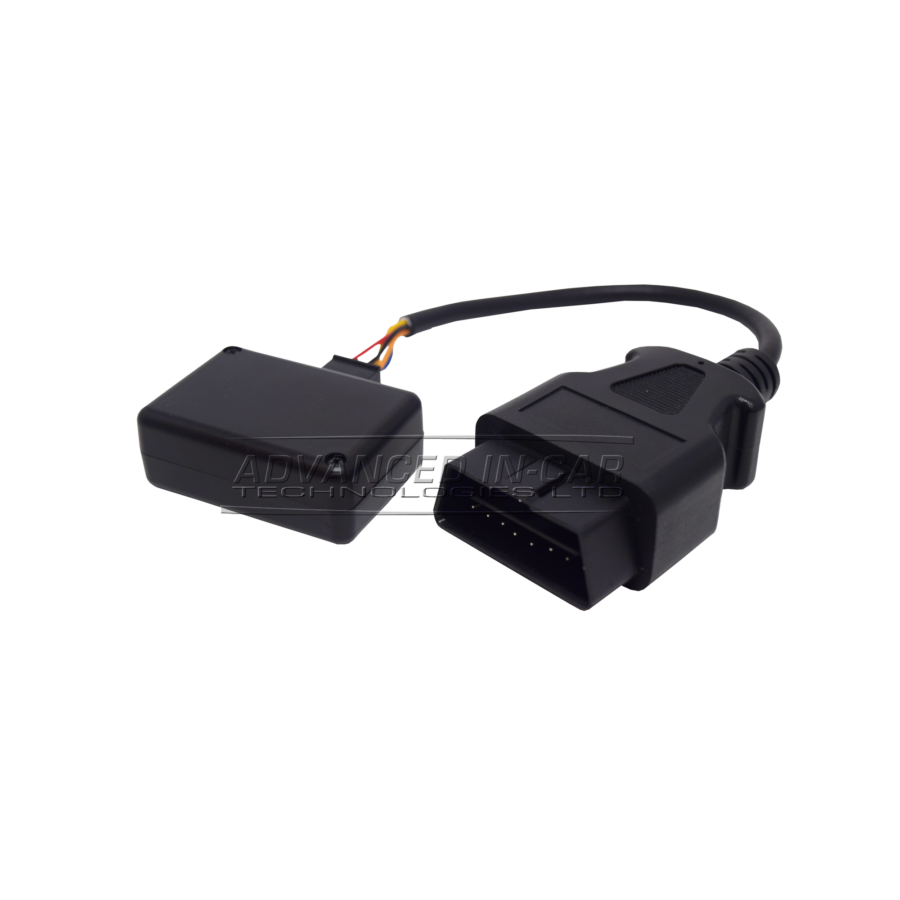

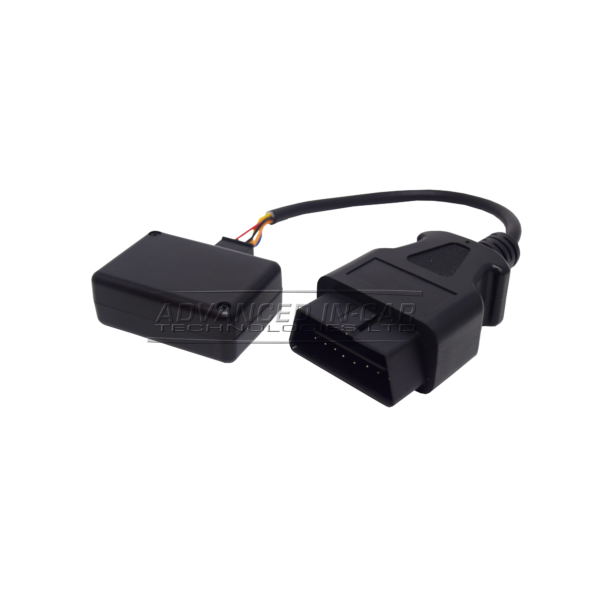

• Coding Dongle

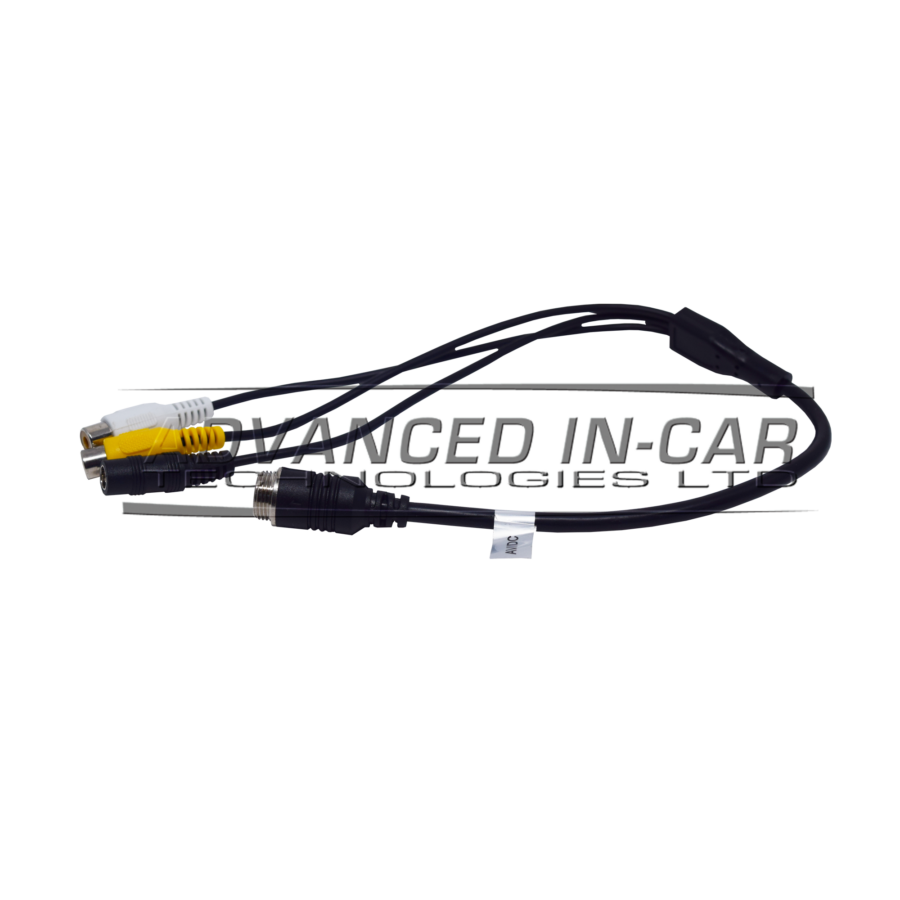

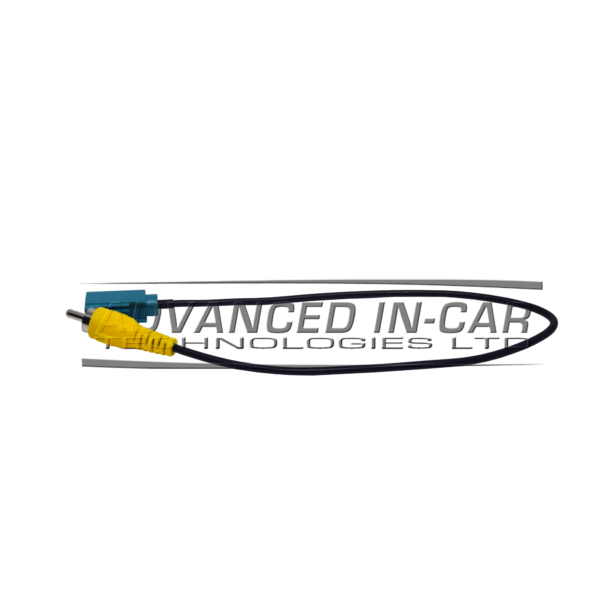

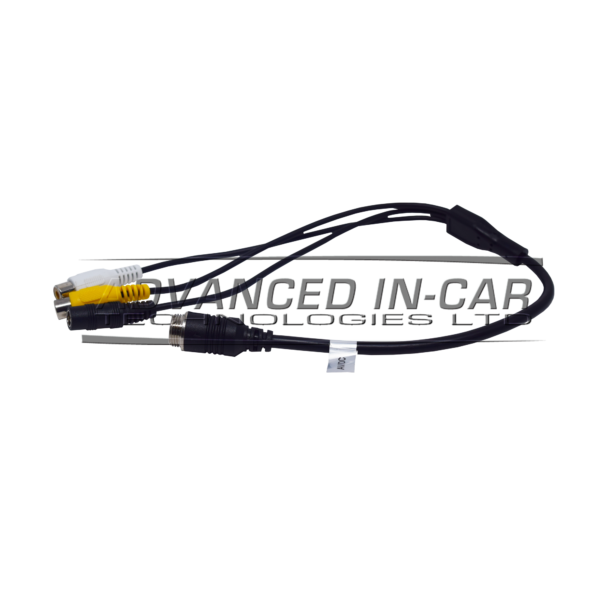

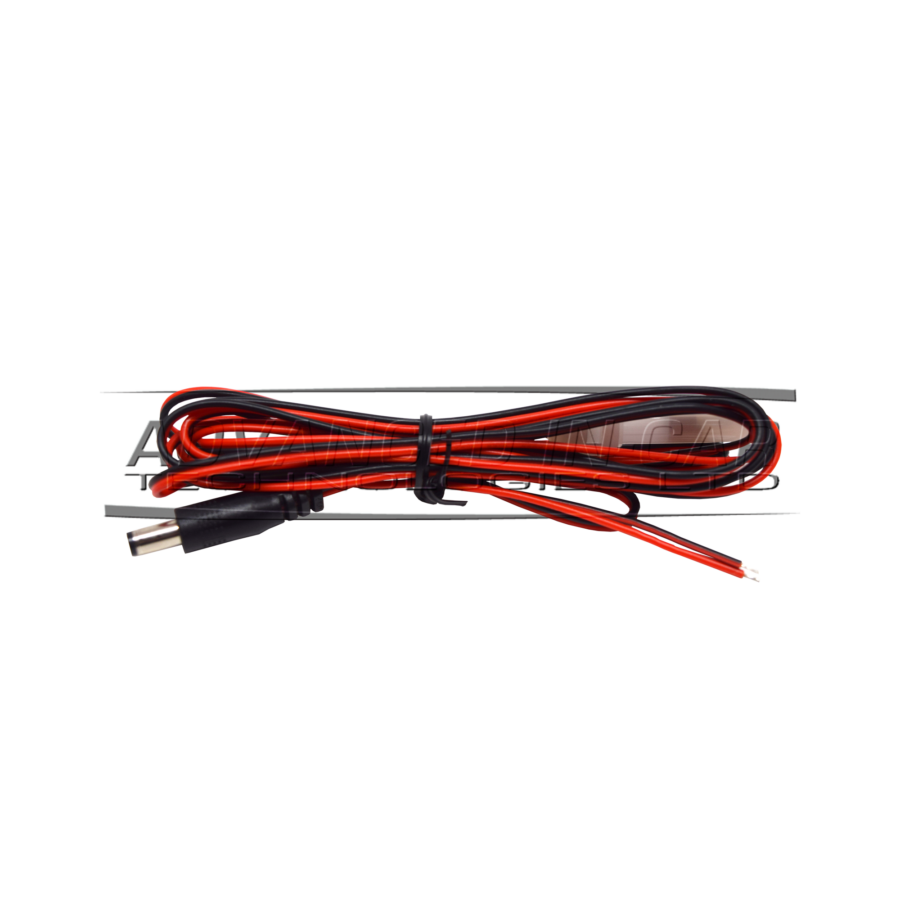

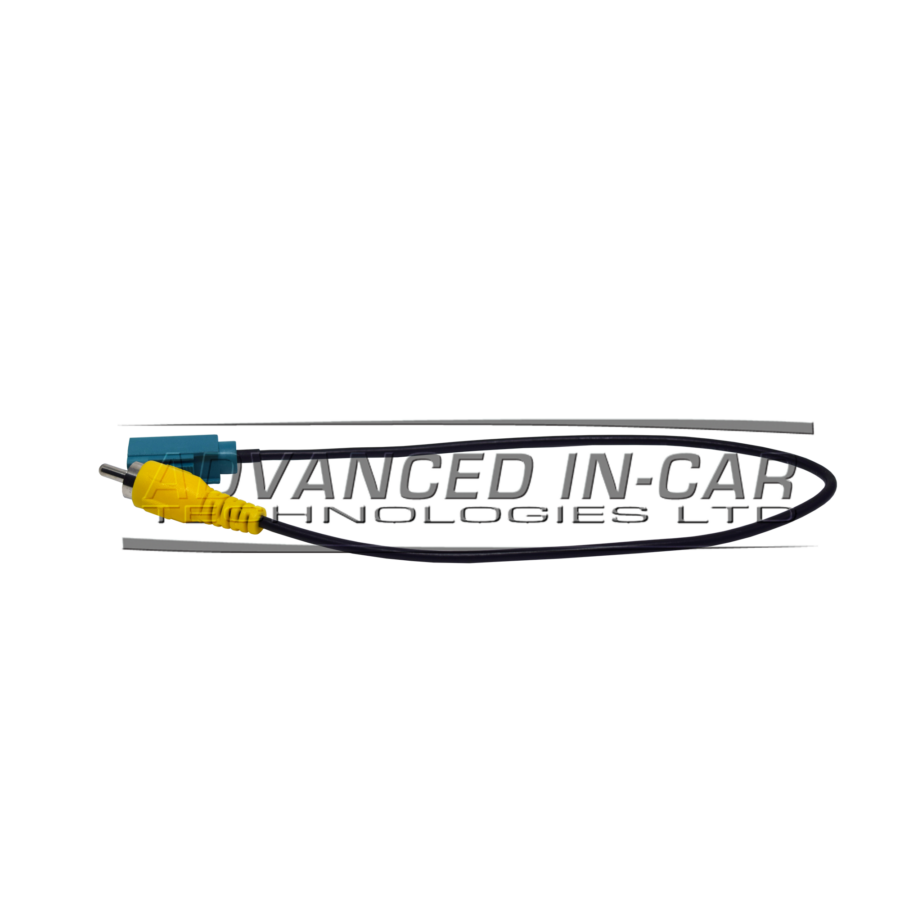

• Wiring Harness
• Instructions

YouTube Video

Please Note:

• We can offer a discount if you have a FLEET of Mercedes Sprinter Vans that need this retrofit.

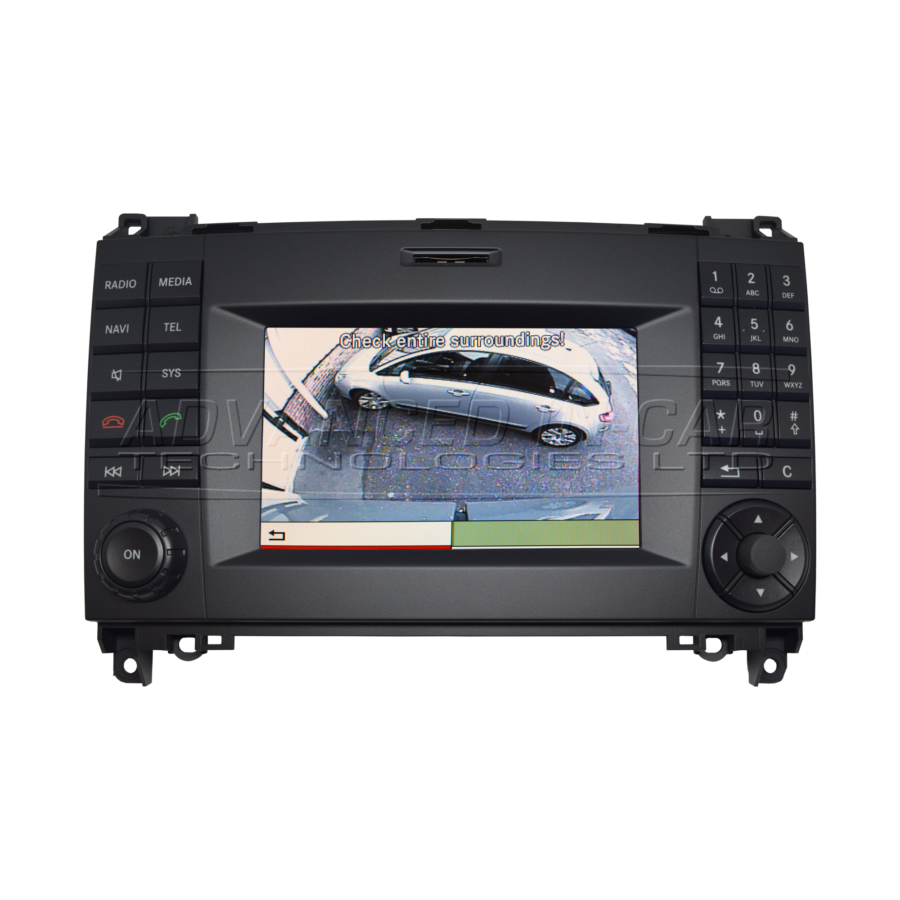

• This kit does not include the Audio 15 Headunit (The image is for demonstration purposes only)
• Due to the type of work involved and what is required, we may not be able to offer on-site installation but we will confirm this when you get in touch with us prior to purchase.
