Motorhome 5G Ready WiFi System – Smart Antenna Flex

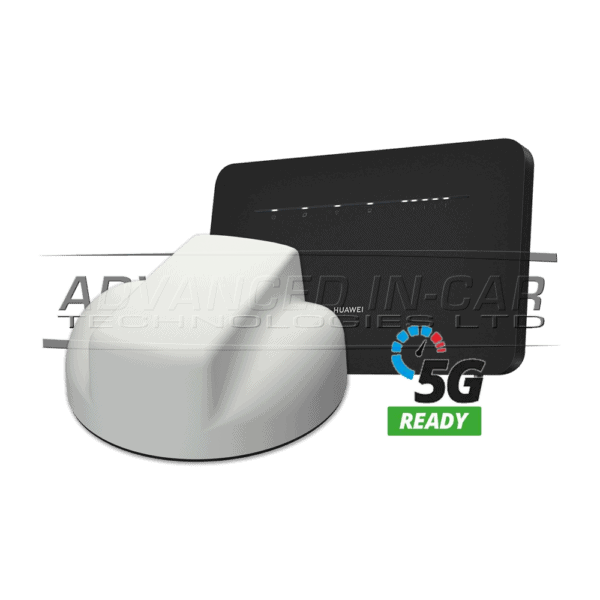

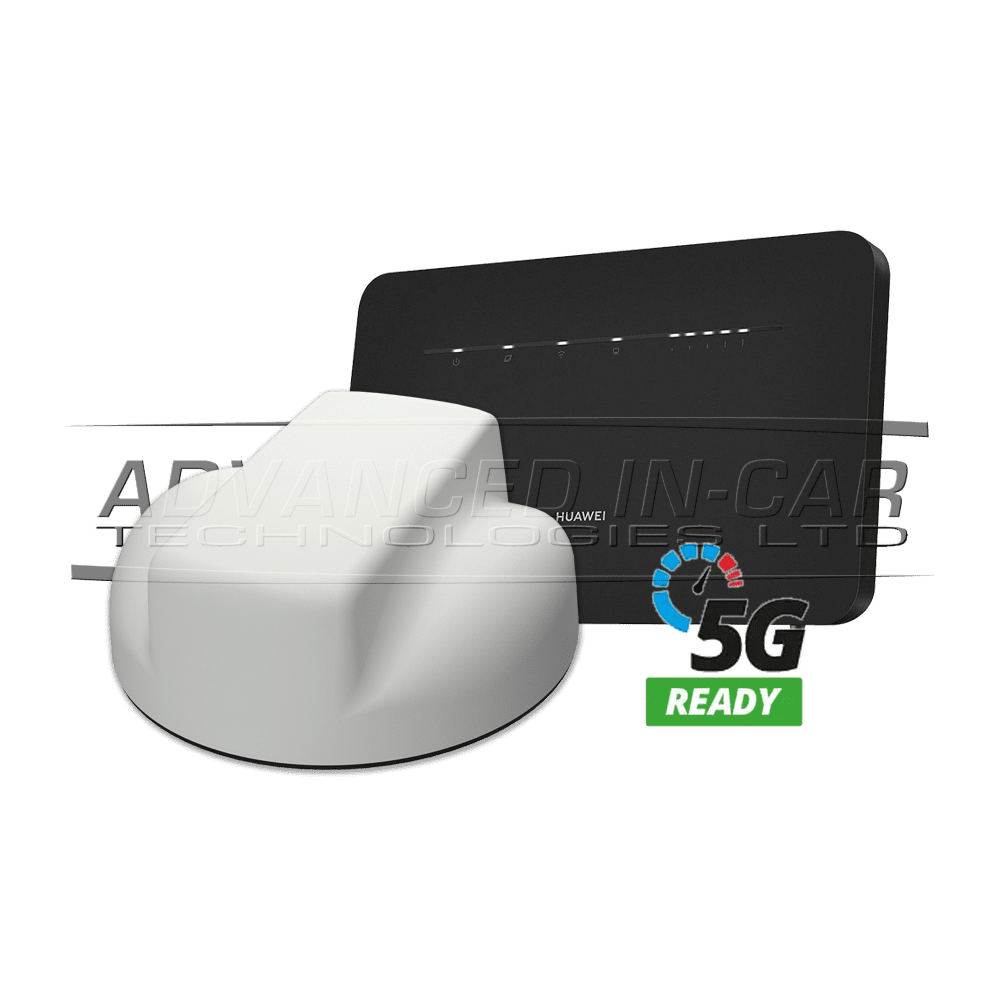

Motorhome 5G Ready WiFi System – 5G Ready Smart Antenna with 4G Flex Router

The new 5G Ready Flex features our latest 5G antenna paired with an upgradable 4G SIM-slot router. With an all new design and up to 20% higher gain for 4G, you are not only better connected but ready to receive 5G signals by upgrading your router when you’re ready.

Staying Connected nowadays is a must! This Wifi System features a 4G Huawei “Fixed” Router and a roof mounted 5G Ready Antenna and is perfect whilst on the move. Once installed, this will give you a significant improvement over the performance of your regular mobile phone data connection.

If you’re looking to stream TV via the internet, the 4G Smart Flex Systemis the ideal solution to ensure you have the reliability and performance necessary to connect a Fire Stick or other streaming device.

At just 75mm high (2.9”) this makes it the perfect solution for your Motorhome or Camper Van. The underside consists of a non-permeable 3M adhesive foam pad and an adjustable threaded internal brace, through which the cables travel into the cabin, for a totally weatherproof installation. The antenna maintains a high level of performance even when mounted on a non-metallic surface such as a coachbuilt motorhome or caravan due to its unique ground plane independent design.

The 5G antenna has a new sealing skirt which offers an extra level of weatherproofing when fully compressed. It also has some market leading certifications including IP69K and IK10 meaning it can withstand a hot pressure washer and can withstand 5KG weight at 40cm.

This system is an upgraded of the Super Popular (£349 Option on our website) which comes with a Fixed Huawei Router that gives you “Home Broadband” whilst on the move in your Motorhome or Caravan. Lightning Fast CAT7  with up to 300mbps Download Speeds. The great feature of this version is that it comes with Ethernet Ports!

Primarily designed for the UK and EU, the Huawei Router is Unlocked allowing you to use your own Data Sim Card or we can provide a Specific “Discounted” Package based on how you want to use your system. Please see the various Sim Card Data Packages listed in the pictures.

YouTube Video

Installed into a 2017 Hymer Exsis i414

Installation Options

1. Supply Only – You will receive a FULL Kit with Instructions
2. Installation at AICT – You will need to bring the vehicle to see us here in Poole, Dorset
3. Nationwide Installation – This is dependent on location and if we have a suitable engineer or workshop near to you. Some vehicles will be a workshop visit only

Top Features:

• ‘Always On’ Secure Internet Connection
• Perfect for streaming TV and use in remote or rural locations
• Factory Unlocked
• 5x the performance of a mobile phone
• WiFi for up to 64 Devices, 4 Wired
• Slim Wall Cradle
• 300Mbps CAT 7
• 4G LTE+ with Carrier Aggregation
• 50-100m WiFi Range
• LED Status Lights
• Easy to use smart phone app

Whats Included:

• Fully Certified 3G/4G/5G Roof Antenna
• Motorhome / Caravan specific installation kit
• 80cm Antenna Cables
• 2x 1m Antenna Extension cables*
• Huawei Flex 4G Router (In Black)
• Bespoke Wall Mounting Bracket
• Full Operating and Fitting Instructions
• Three ‘Starter’ SIM Pack

Smart Antenna Technical Specifications

• Fully certified LTE Antenna
• Works with 3G/4G/5G worldwide compatibility
• Aerodynamic and low profile
• Ground plane independent, suitable for use on coach-built motorhomes
• Rated to IP69K water ingress protection
• Frequencies 698-960 / 1700-2700 / 2700-3800 / 4900-600
• Omni-directional radiation
• Operational Bands: LTE / Cellular
• Height 2.9” (75mm)
• Diameter 7.01” (180mm)
• Max Roof Thickness 70mm (70mm Thread included)
• Max panel thickness / ridge height (mm) 10 (0.4”)
• Required mounting hole size (mm) 25 (1.0”)
• 698-960MHz: 3dBi / 1710-2700MHz: 6dBi / 2700Mhz-3800MHz: 7dBi / 4900-6000MHz: 8dBi
• Available in Black or White

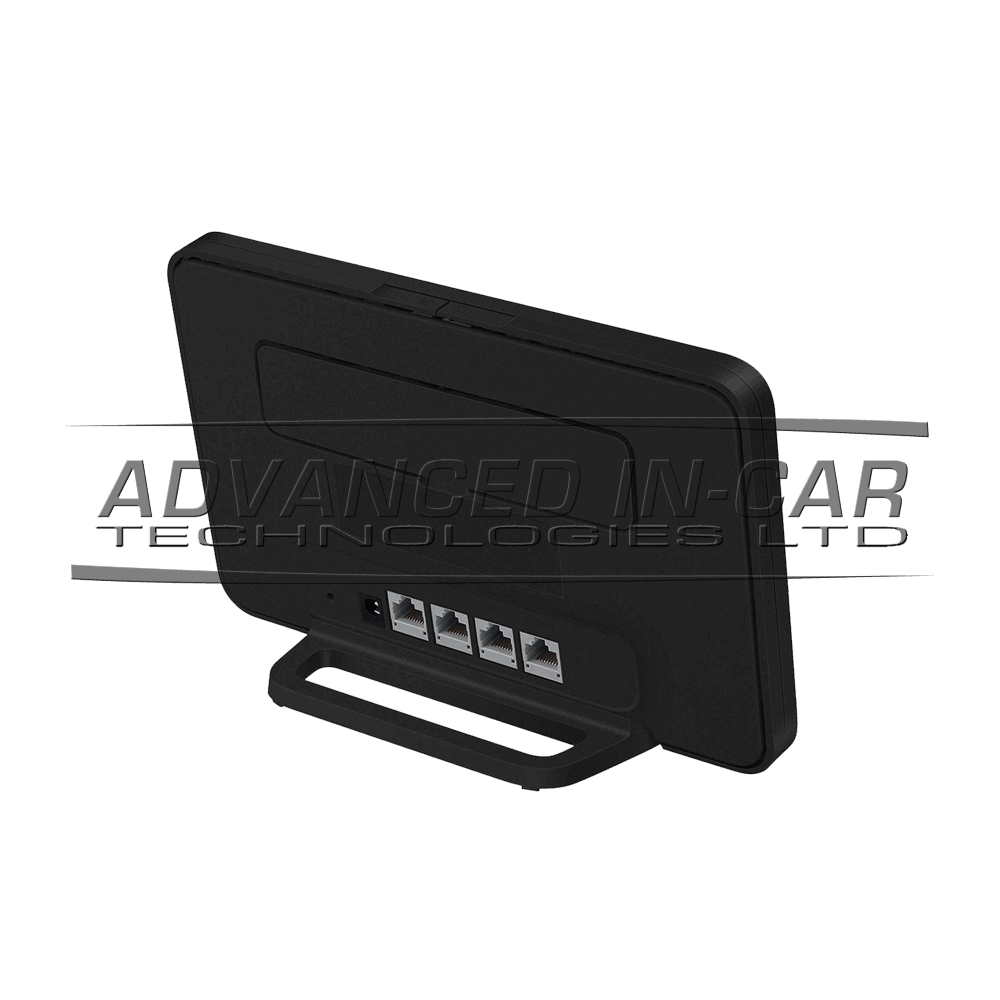

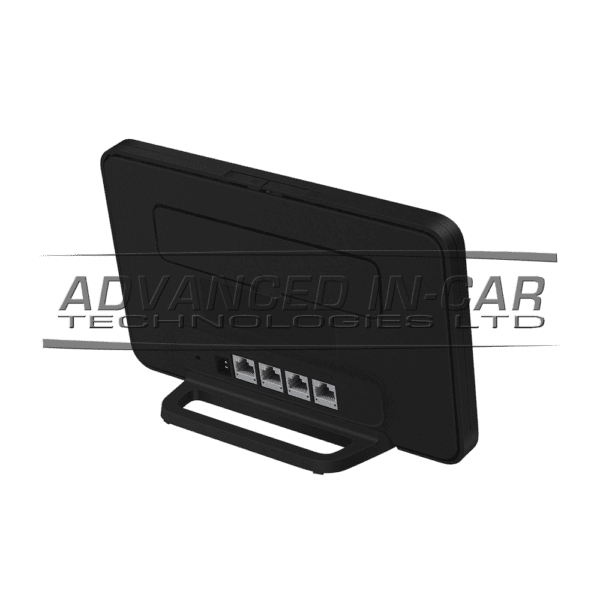

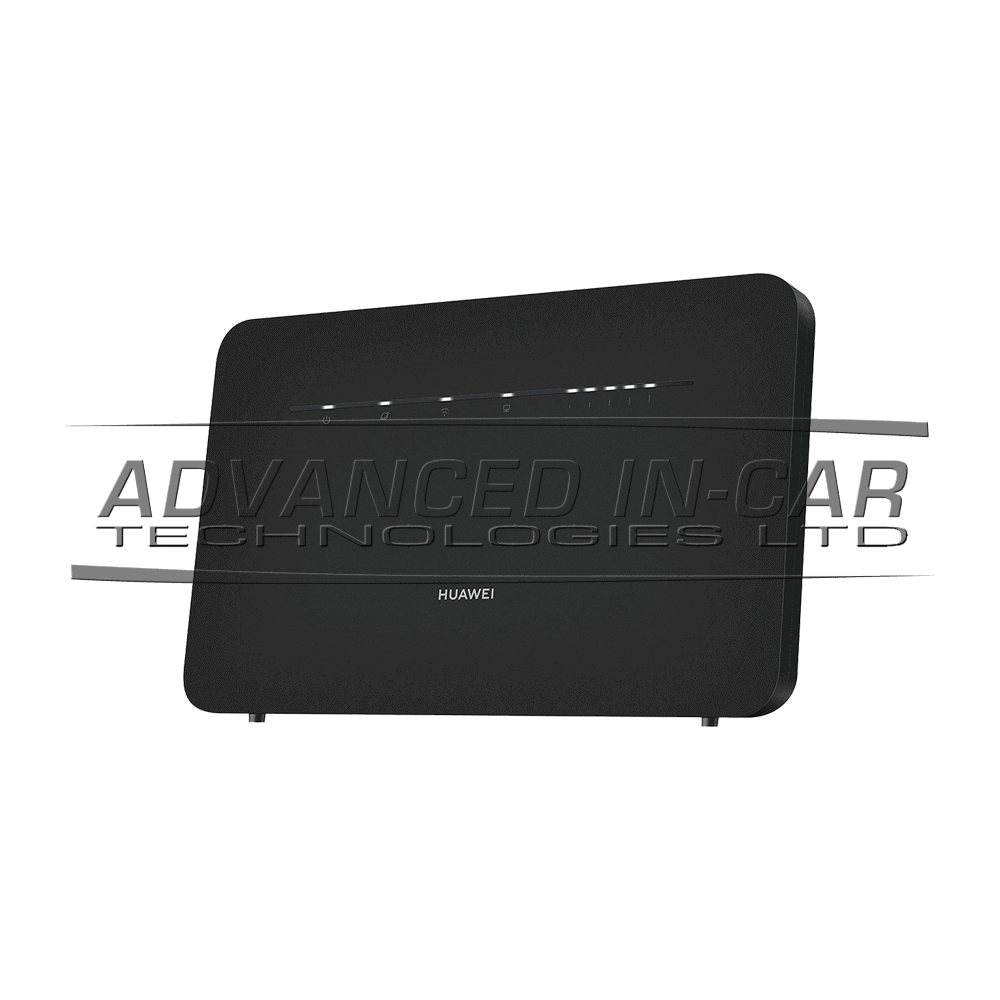

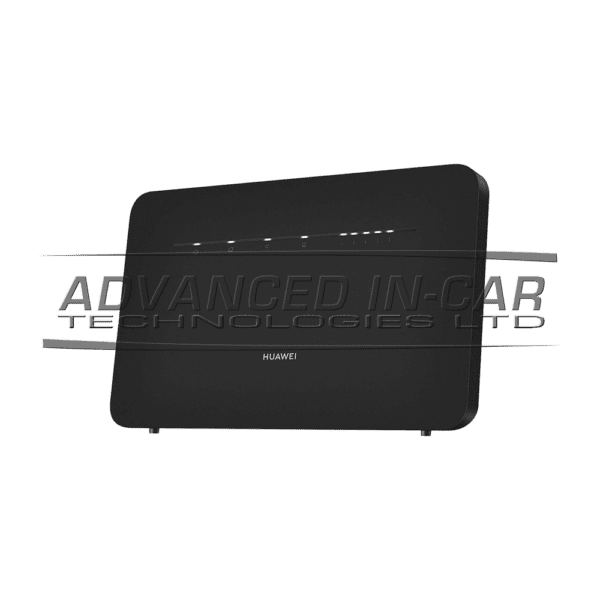

4G Huawei Router Specifications:

• Router Fitted Dimensions including wall mount bracket – H140 x W225 x D55mm
• Connected Devices: 64 Wireless via 2.4Ghz and 5Ghz
• 4 Wired – RJ45 Gigabit LAN
• LTE Class / Modes: Category 7 LTE – 300Mbps Down / 100Mbps Up
• Modes: B1/B3/B7/B8/B20/B28/B32/B38
• Supporting Carrier Aggrigation (Dual Channel)
• Micro SIM
• VPN
• RJ11 for VOIP or VoLTE
• 240v Mains & 12v Regulated Power
• Black in colour with Black Bracket

Accessories

Roof Extension Thread

Roof Thread Extension Kits suitable for all roof thicknesses.

It’s worth noting that all of our 4G Smart and 5G Ready Products come with a 70mm roof thread extension as standard which accommodates most motorhome, caravan and panel van conversions.

If you are converting your own panel van, you may wish to opt for the 40mm thread extension as this is more suited to a sheet metal installation

American RV’s and some coachbuilt motorhomes have thicker insulation and therefore generally require a longer thread extension to accommodate this.

Stand-Off Roof Mount

Stand-off Roof Mount for surface mounting, compatible with:

We have developed a high quality lightweight aluminum powder coated stand off bracket to allow a surface mount installation, the footprint of which is not much larger than the antenna itself.

The bracket has been specially designed to accommodate the roof of a Fiat Ducato / Peugeot Boxer / Citroen Relay roof and give you the choice of either mounting the bracket on top of or between the ridges.

Antenna SMA Cable Extensions

High performance low loss SMA Cable extensions compatible with:

Please Note:

• Installation requires an 25mm hole to be drilled into your roof
• If you would like us to install this product for you, it must be done at our workshop in Poole, Dorset. Costs will be discussed based on the vehicle when you get in touch.
