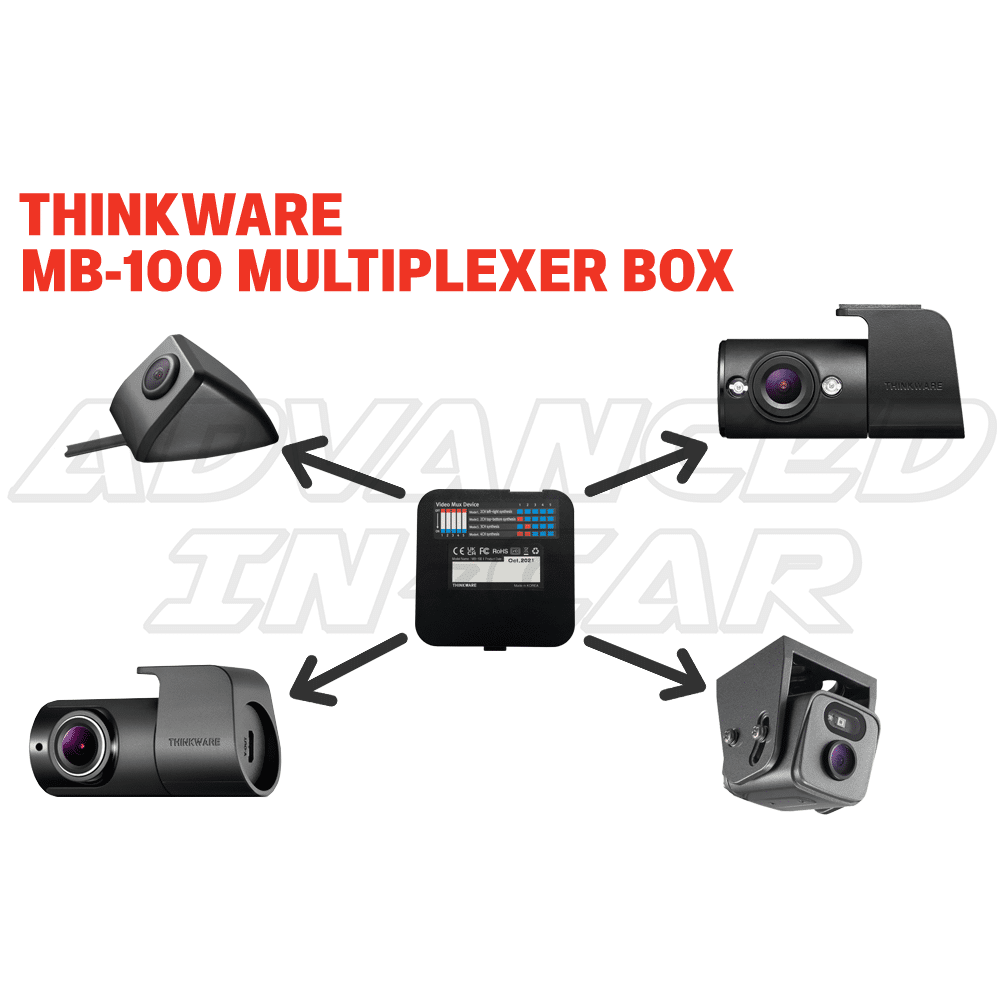

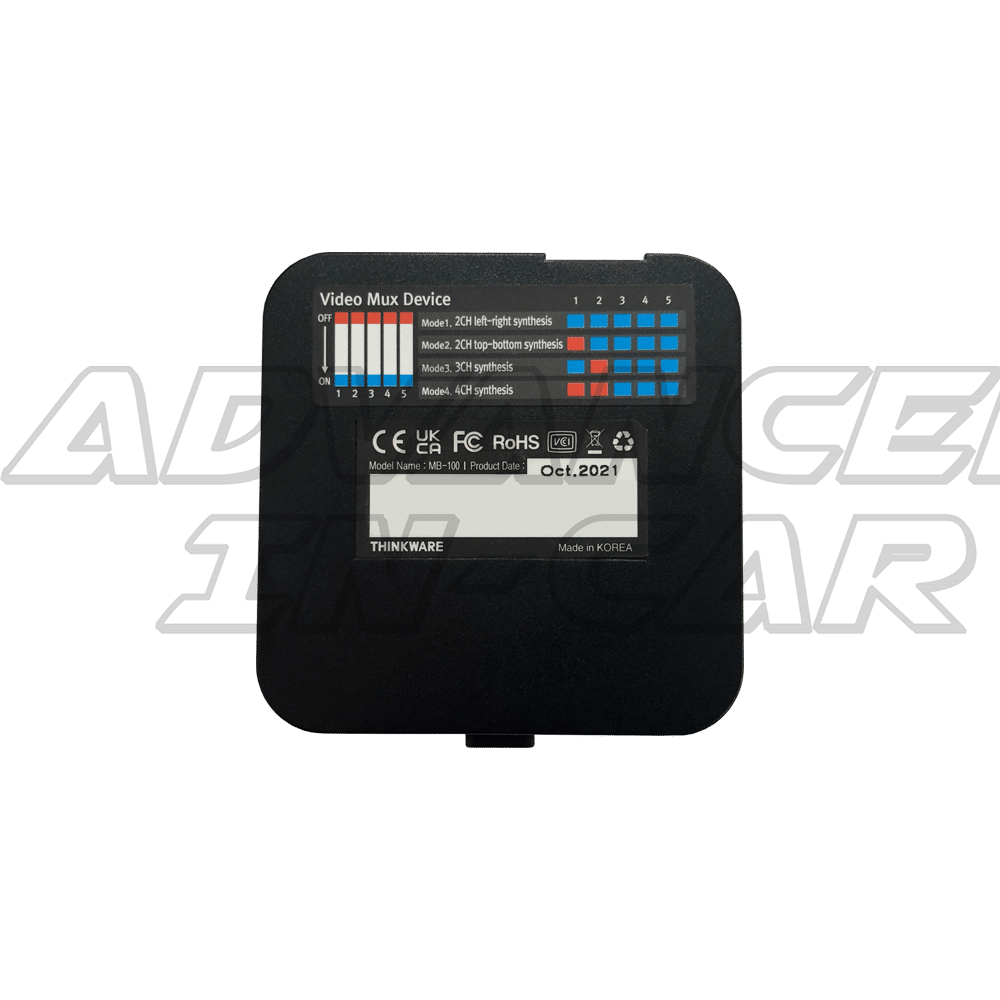

Thinkware MB-100 Multiplexer Box

The Thinkware MB-100 Multiplexer Box was originally designed to convert the Thinkware F790 into a 5 Channel System through the use of optional camera add-ons.

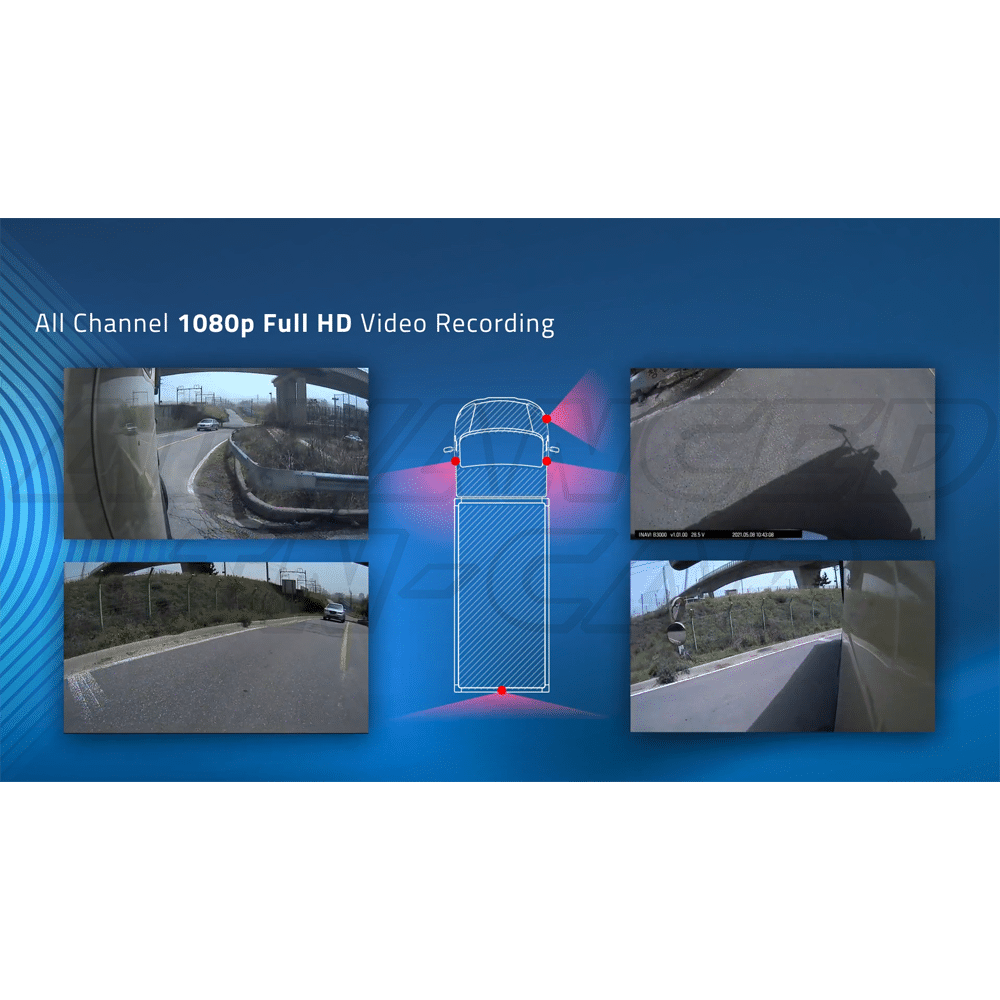

The MB-100 box is however compatible with the F200 Pro, X700 and T700 LTE as well as the F790. This can share the additional option rear camera feed with up to 4 rear cameras, for all round surveillance by a range of FHD cameras; internal, internal IR, external IR (for rear and side mounting) and streamlined side cameras, more suited to light commercial vehicles and passenger cars.

Applications include convertibles, where internal rear cameras can’t be mounted, taxi drivers who want internal surveillance as well as external, truck fleets that want to monitor driver behaviour as well as the outside of the vehicle and the ever-expanding fleet of delivery vans.

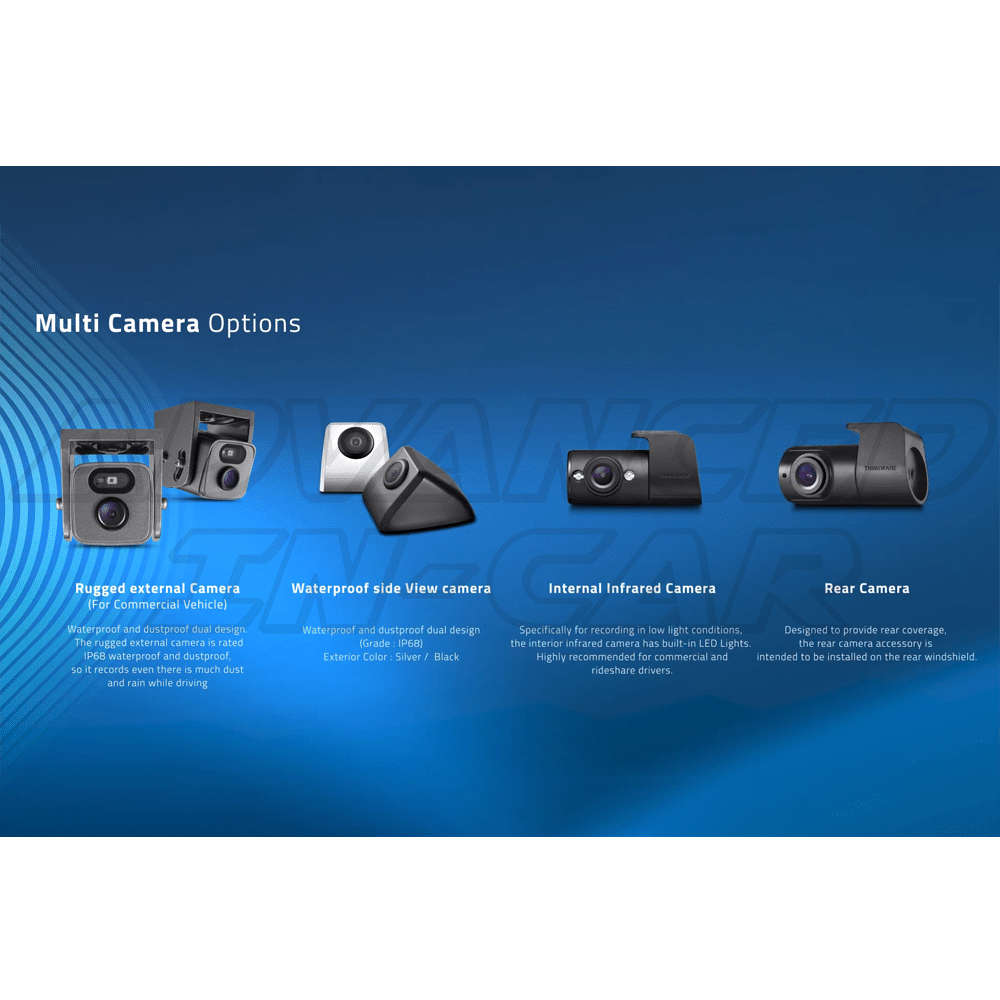

The MB-100 can support an additional 4 cameras which you can purchase in addition to the MB-100:

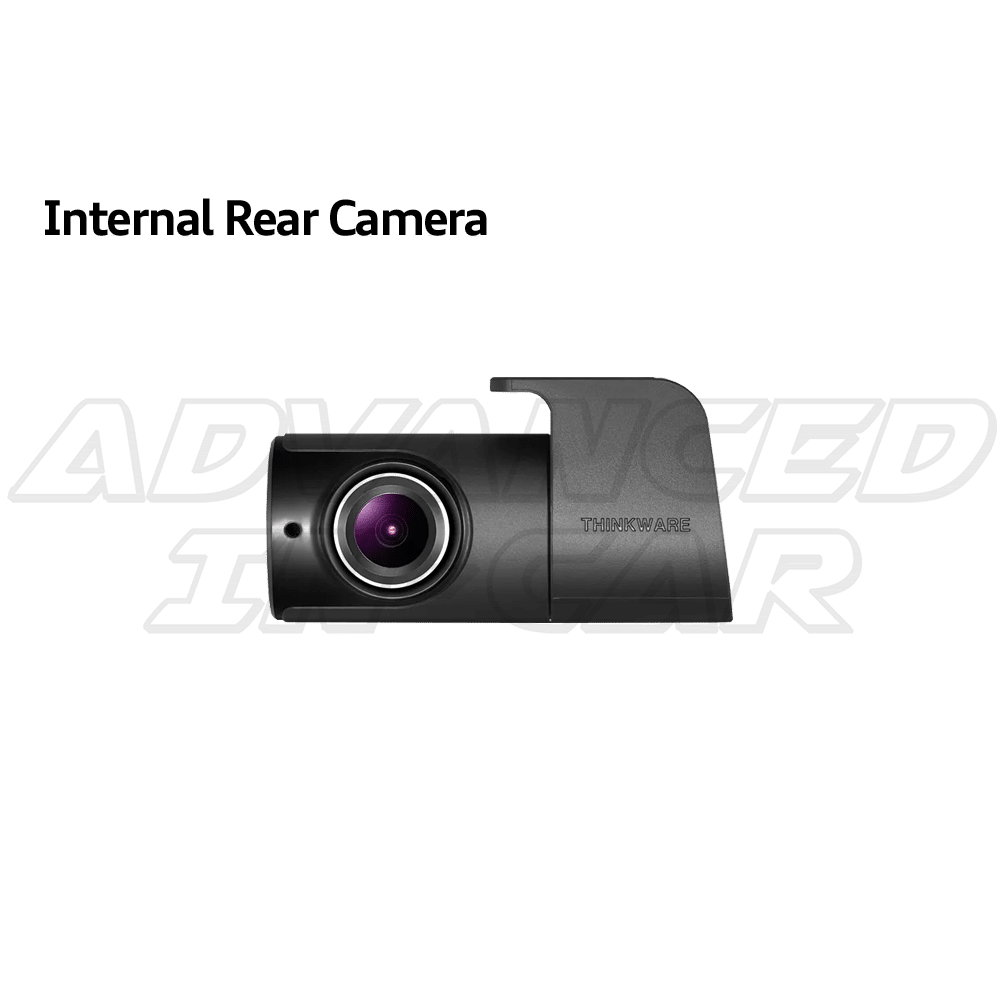

• Thinkware Internal Rear Camera

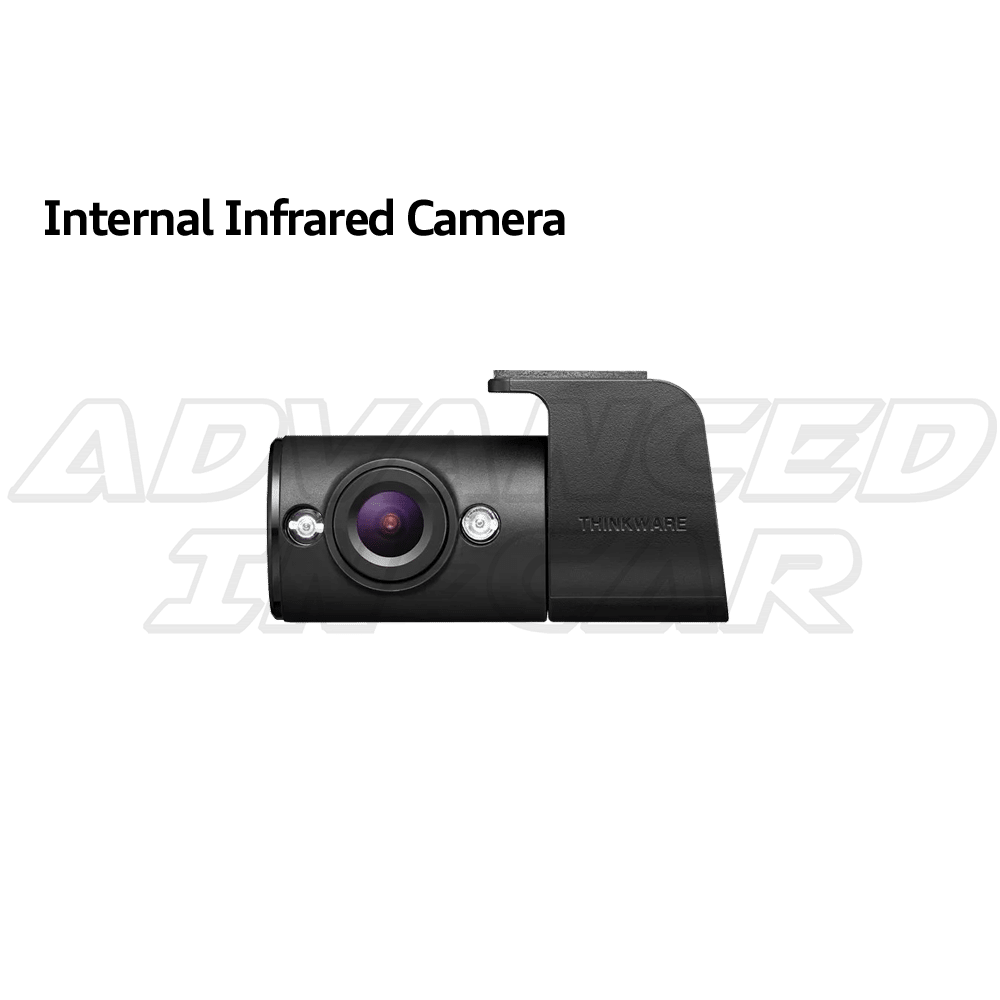

• Thinkware Internal Infrared Camera

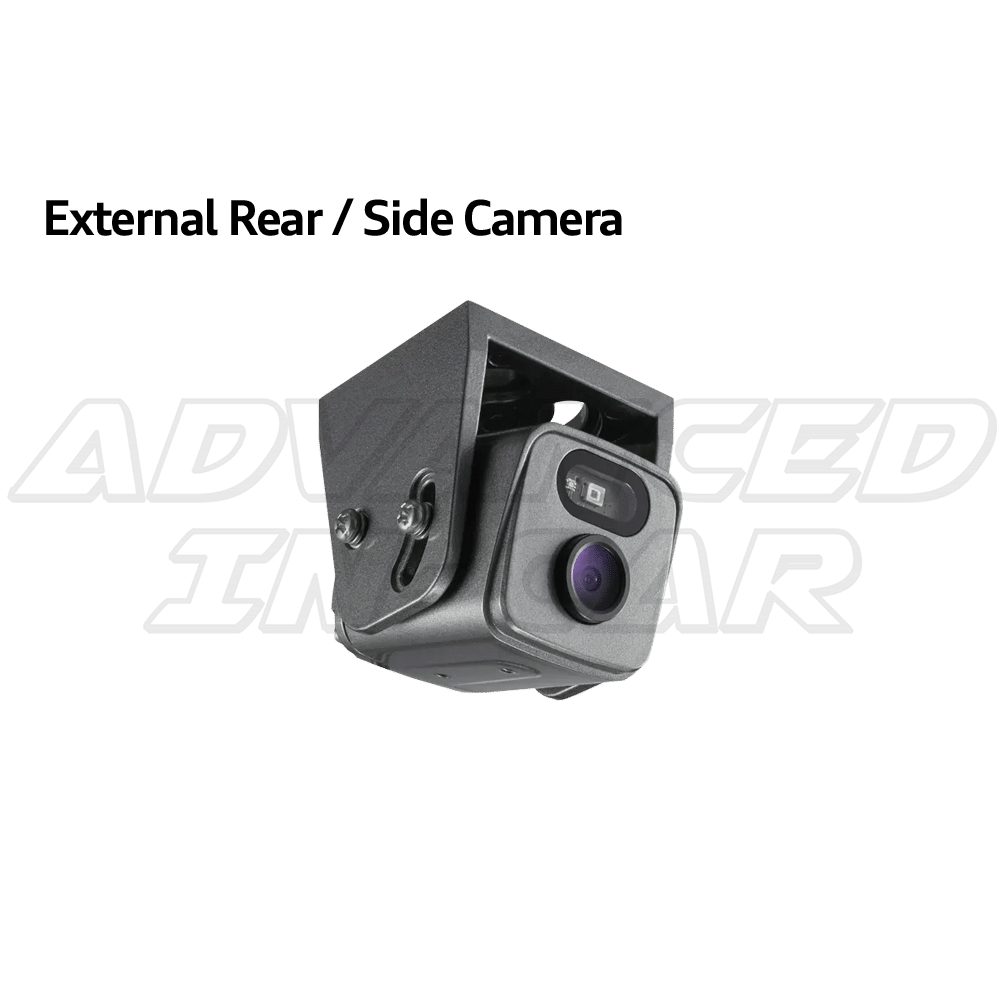

• External Rear Camera

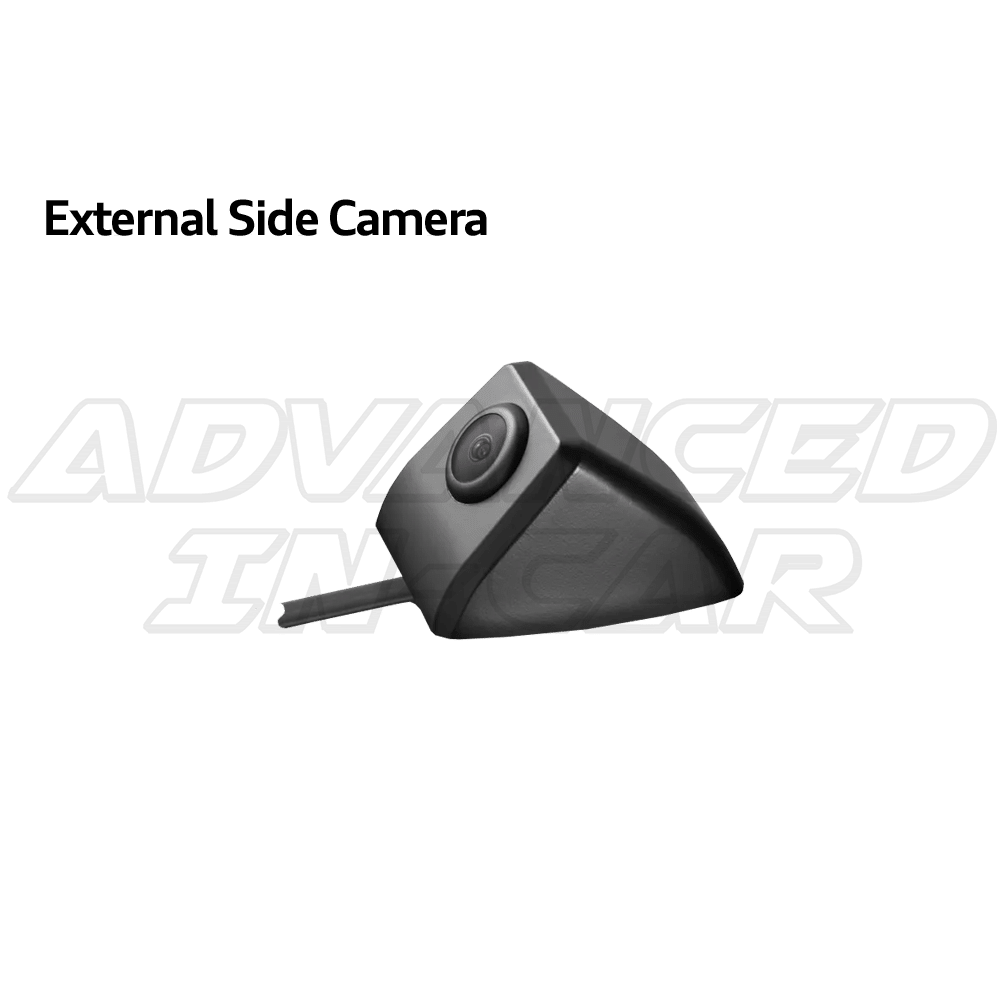

• External Side Camera (Please note these come as a pair – Driver / Passenger Side)

We’ve also added in “Packs” that allow you to purchase a complete set up. Please remember that you will still need to purchase the main Dash Cam System also.

The compatible Thinkware models are:  F790 / F200 / Q200

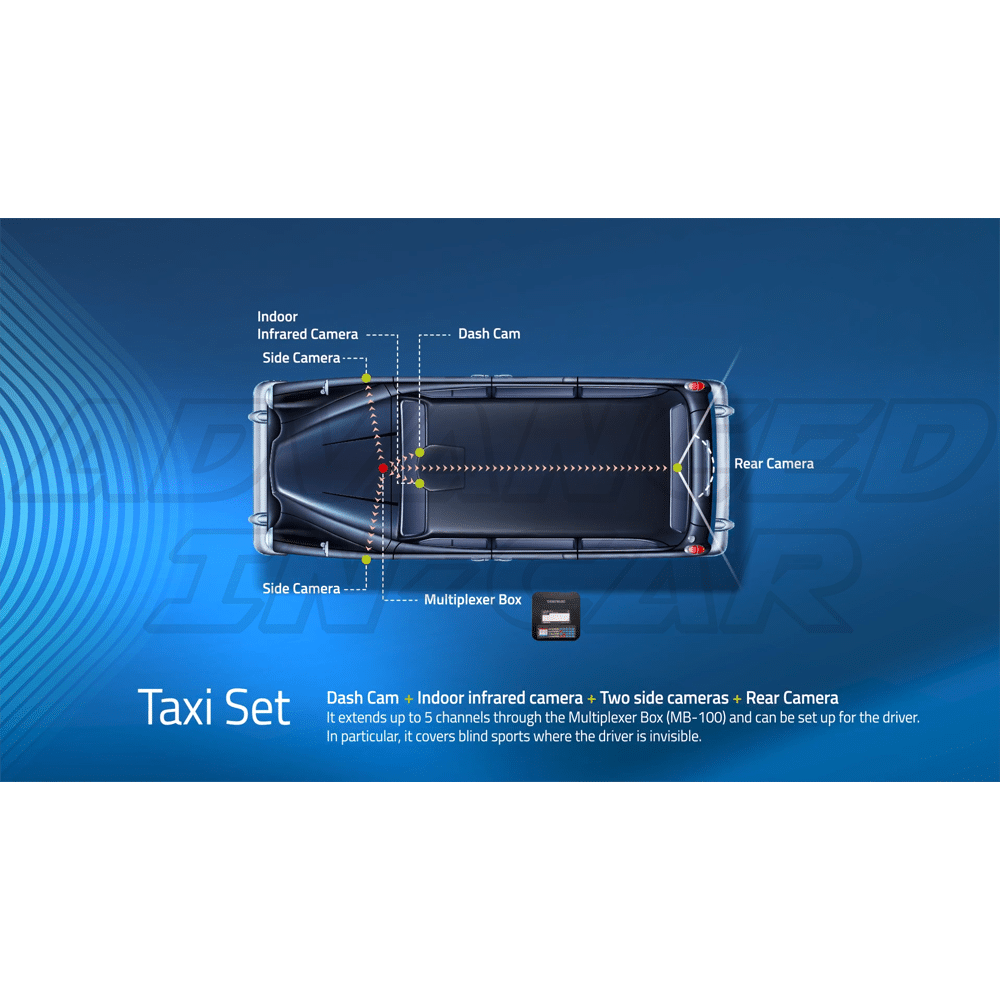

Taxi Set

Included in this set are the following:

• MB-100 Multiplexer Box
• 2x External Side Cameras
• 1x Internal Infrared Camera

When paired with the Thinkware F790 / T700 Front & Rear System you will have a complete 5 Channel System

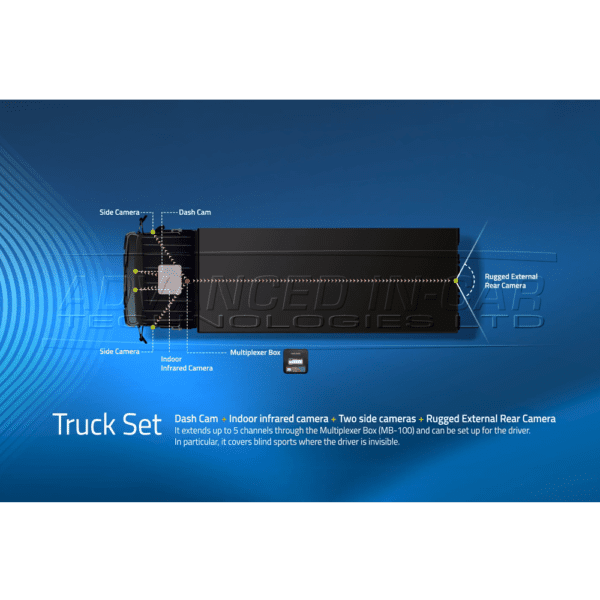

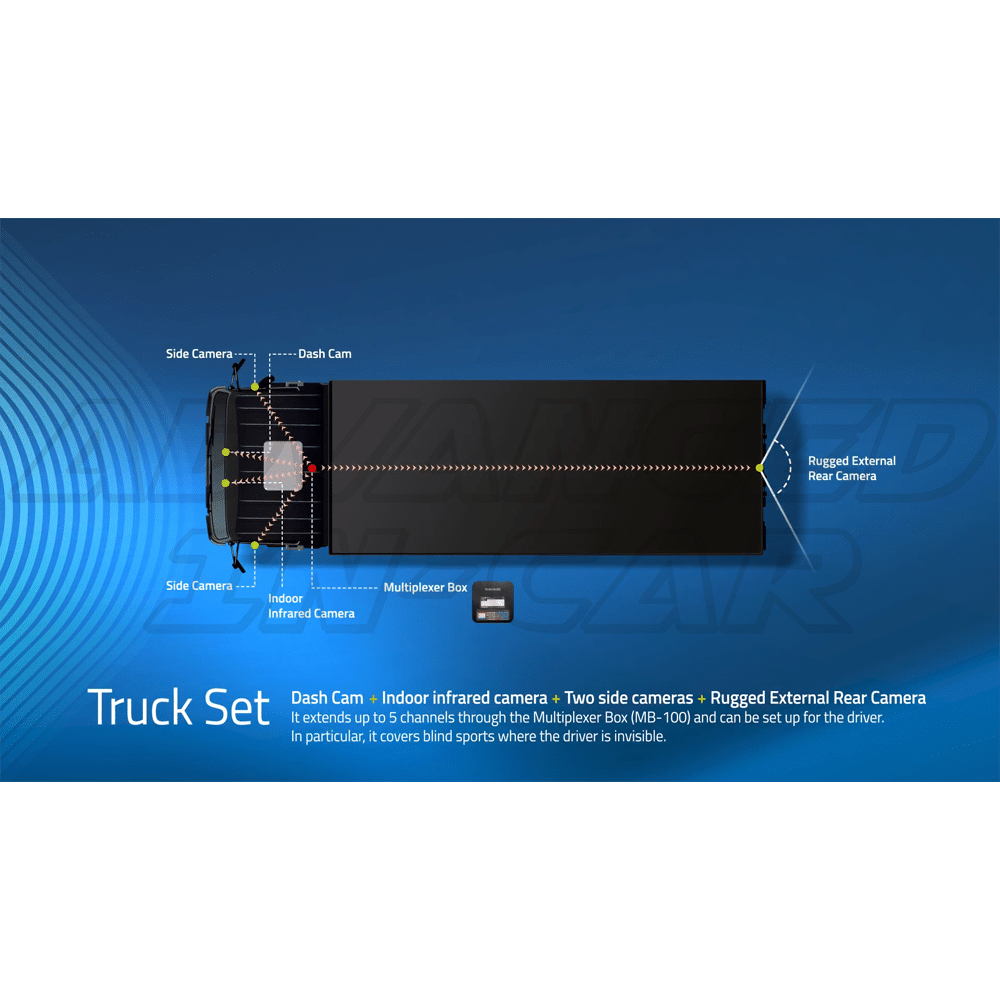

Truck Set

Included in this set are the following:

• MB-100 Multiplexer Box
• 2x External Side Cameras
• 1x Internal Infrared Camera
• 1x External Rear Camera

When paired with the Thinkware F790 / T700 Front & Rear System you will have a complete 5 Channel System. Please note that by fitting the External Rear Camera you will not be able to utilise the Internal Rear Camera with either of these systems.

We can offer this system supplied and fitted at our workshop here in Poole but this will be quoted on a per vehicle basis. Please get in touch for more information.

Please Note:

• If you just order the MB-100 Multiplexer Box you will not receive any cameras unless you add them as an optional item.
• If you choose either the Taxi or Truck Set please do not add any of the Optional Cameras as they will already be included.
